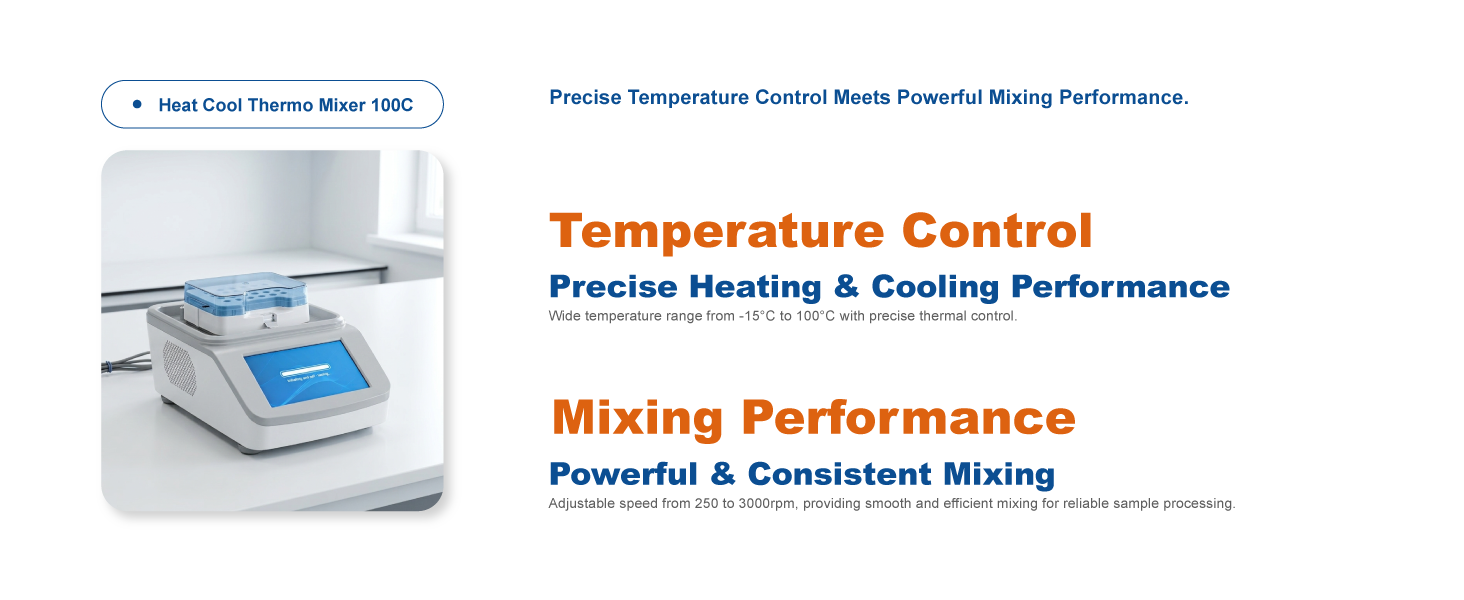

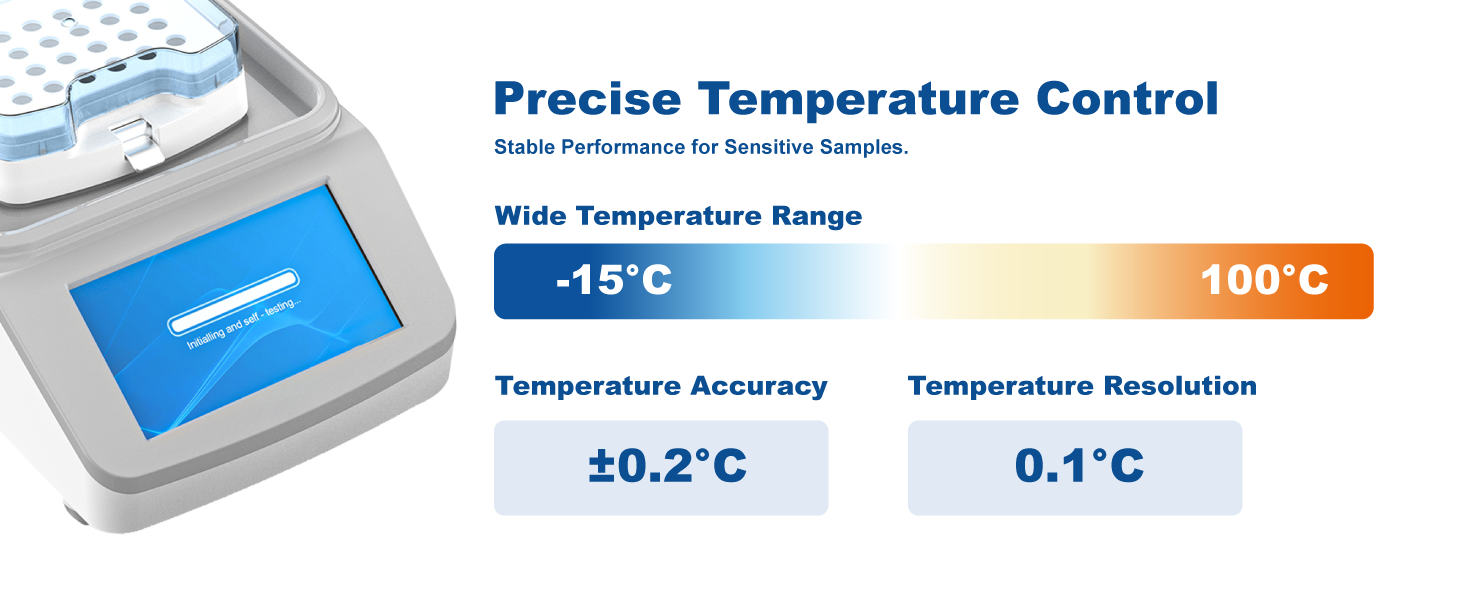

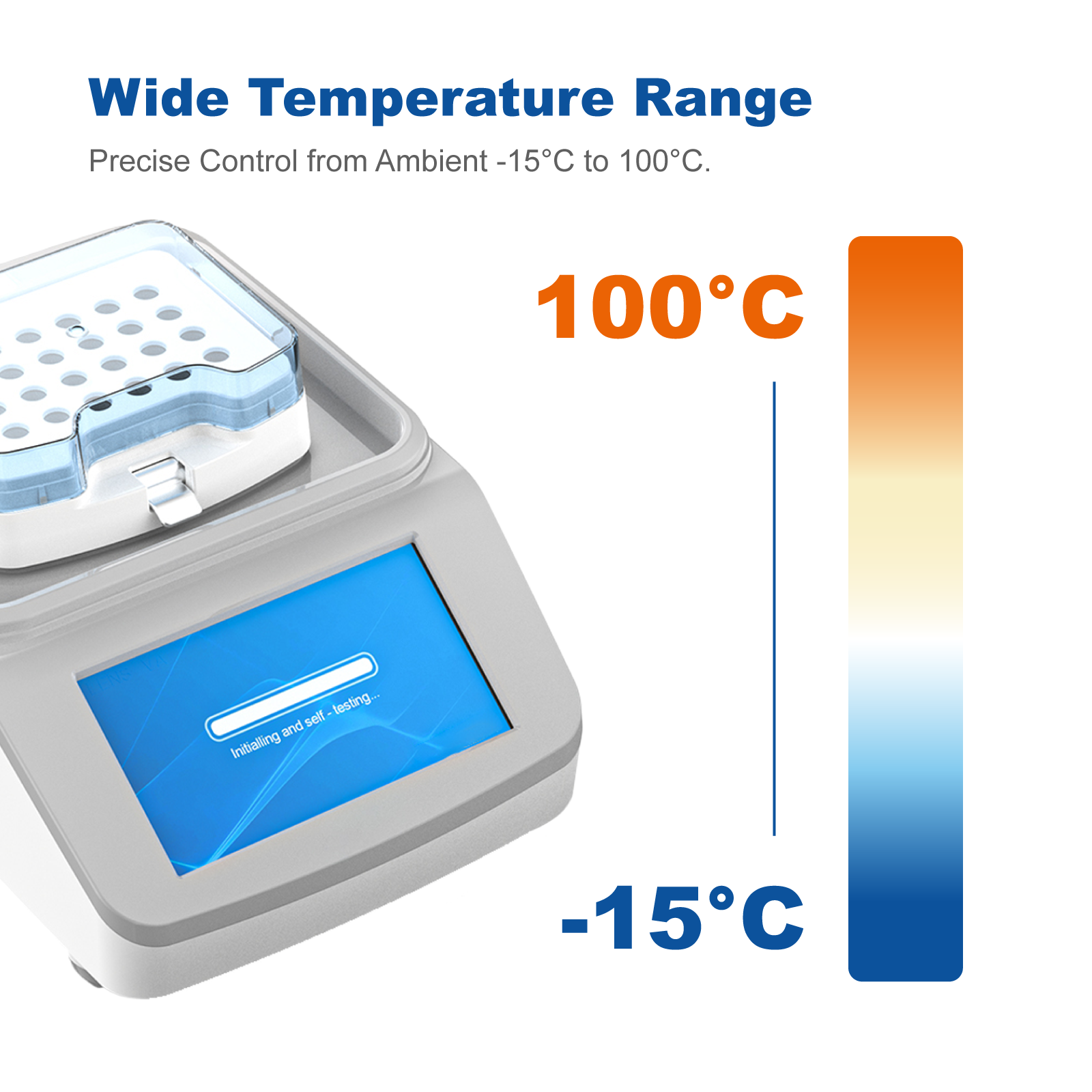

Precise Temperature Control Across a Wide Range – Covers 0–100°C with ±0.2°C accuracy (20–40°C), ±0.5°C uniformity, and 0.1°C resolution, ensuring consistent and reproducible incubation results.
Flexible Heating & Cooling Rates – Offers 4 selectable heating rates (MAX, 5, 2, 1°C/min) and 4 cooling rates (MAX, 2, 1, 0.5°C/min) , allowing customized temperature ramping for different experimental needs.

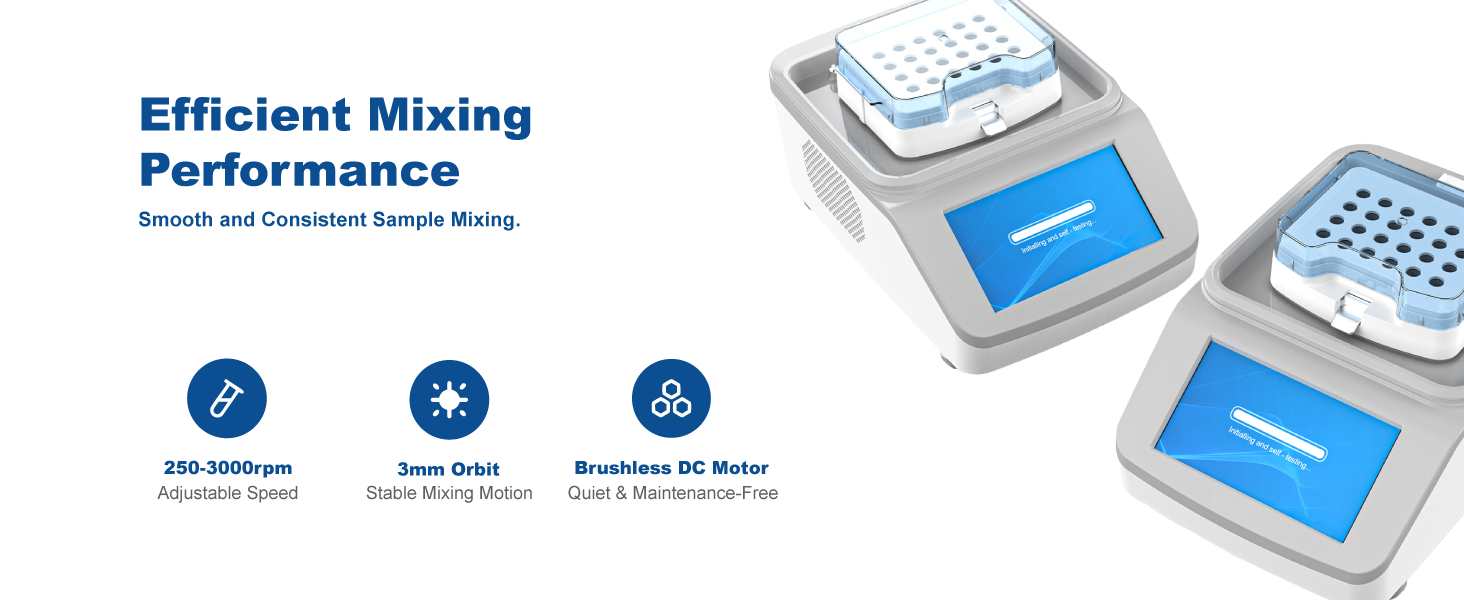

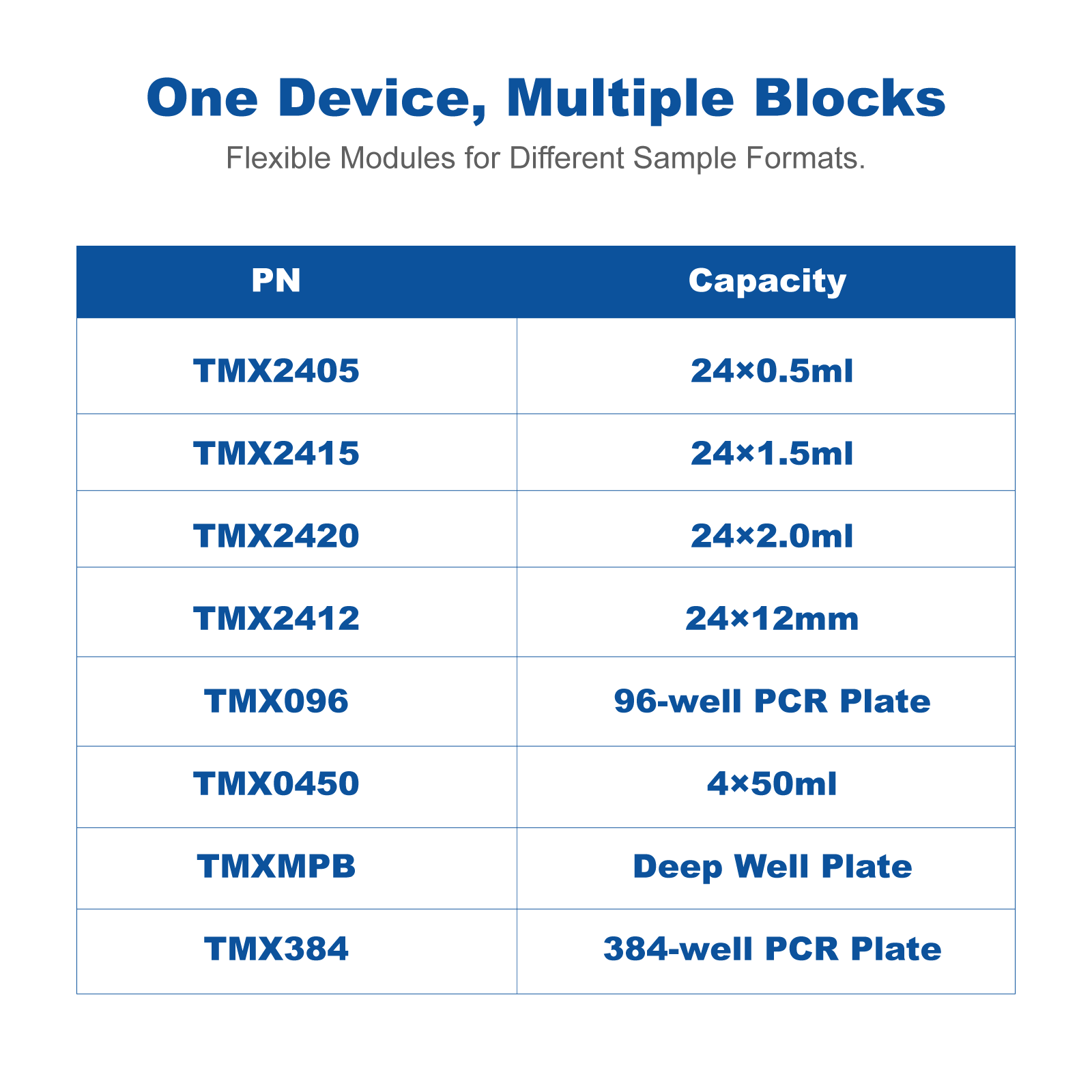

Powerful & Versatile Mixing Performance – Delivers 250–3000 rpm mixing speed with a 3.0 mm orbit (on 100C/100 models), compatible with sample volumes from 0.1 mL to 50 mL and interchangeable blocks for various tube and plate formats.

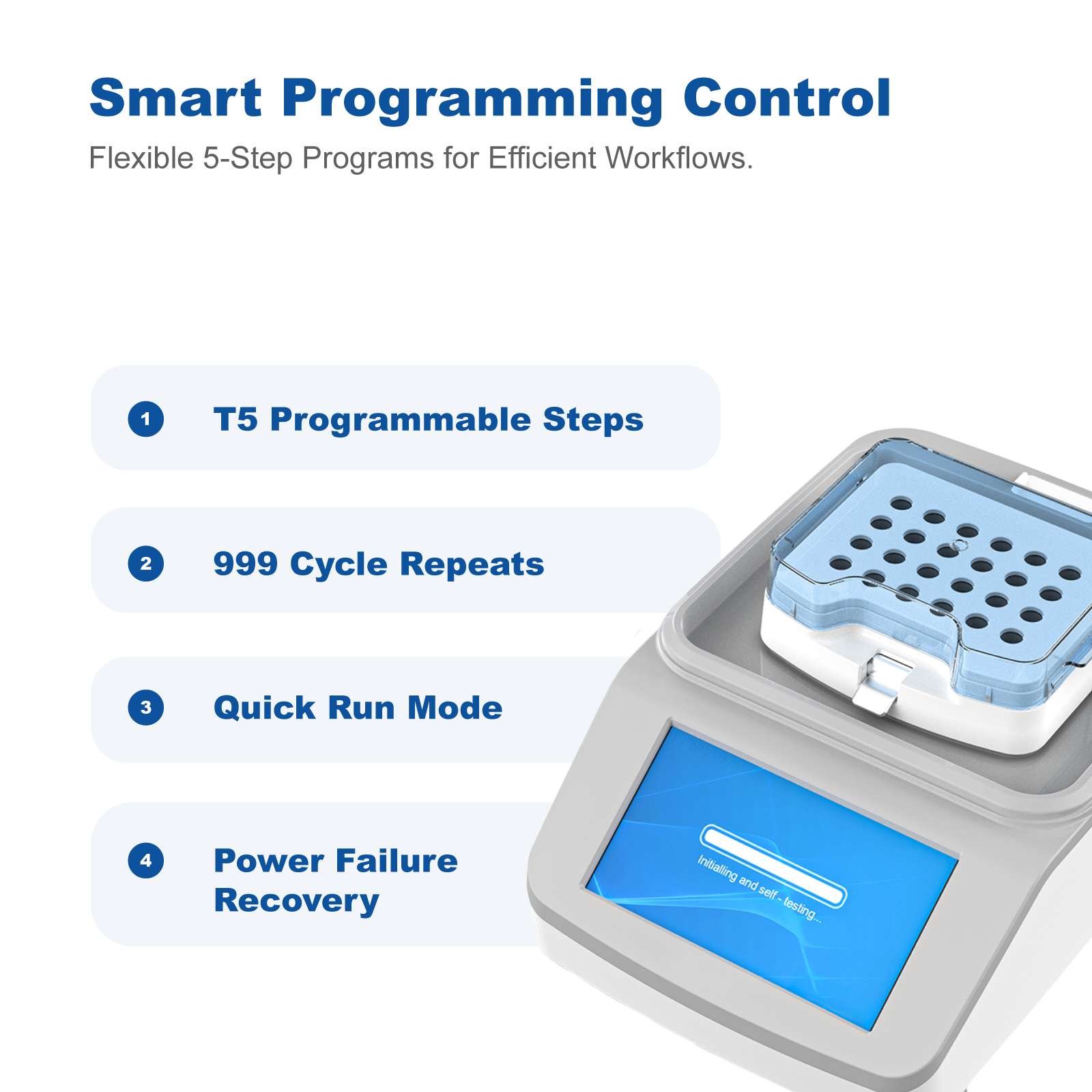

Intuitive Multi‑Step Programming – Supports up to 5 program steps with 999 cycles, plus Quick Run mode for single‑step operations, pre‑heating function, low‑temperature storage (4–20°C), and auto‑recovery after power failure for enhanced convenience.

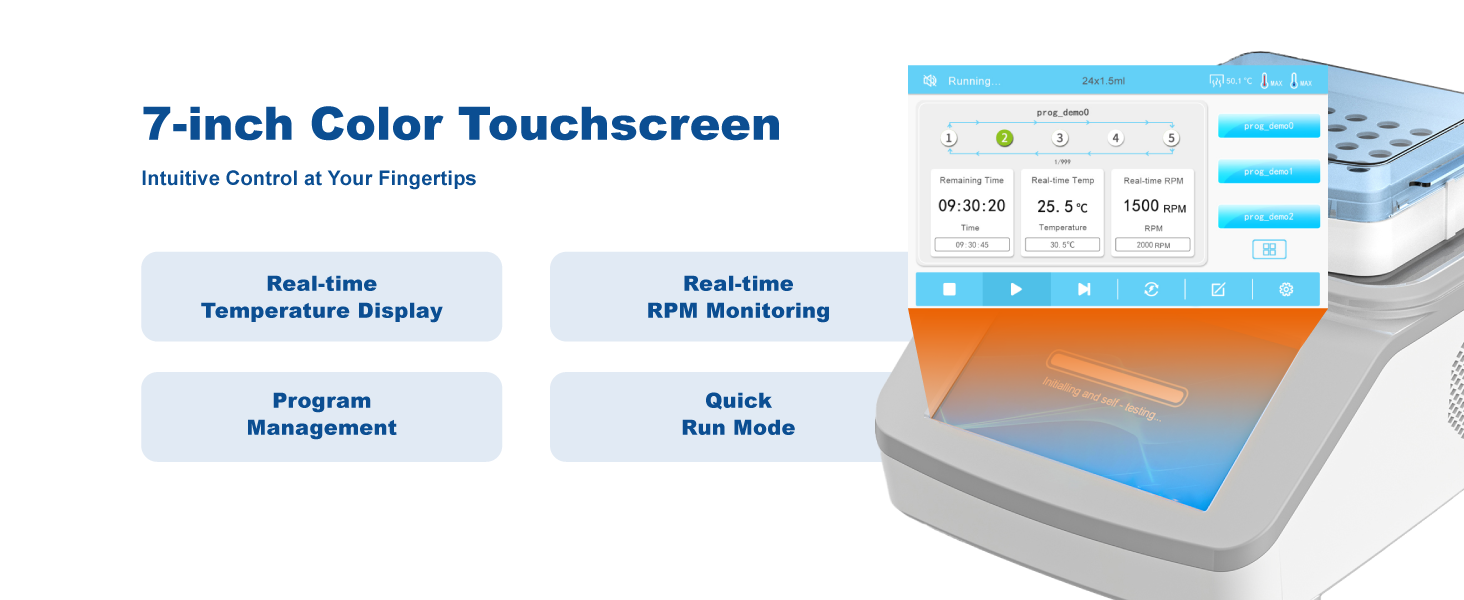

User‑Friendly 7‑Inch Touchscreen Interface – Displays real‑time temperature, speed, and program progress on a large color screen, with built‑in calibration for 4 temperature points (10/40/70/95°C or 45/60/80/95°C) to maintain long‑term accuracy.

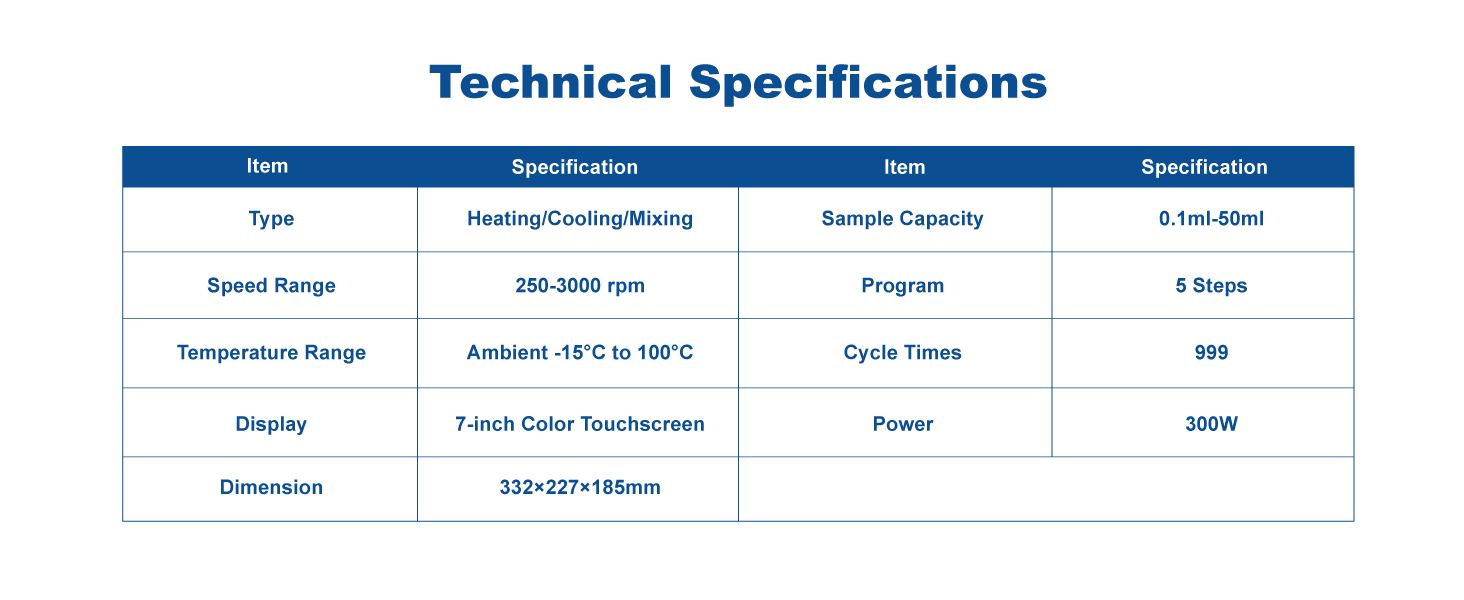

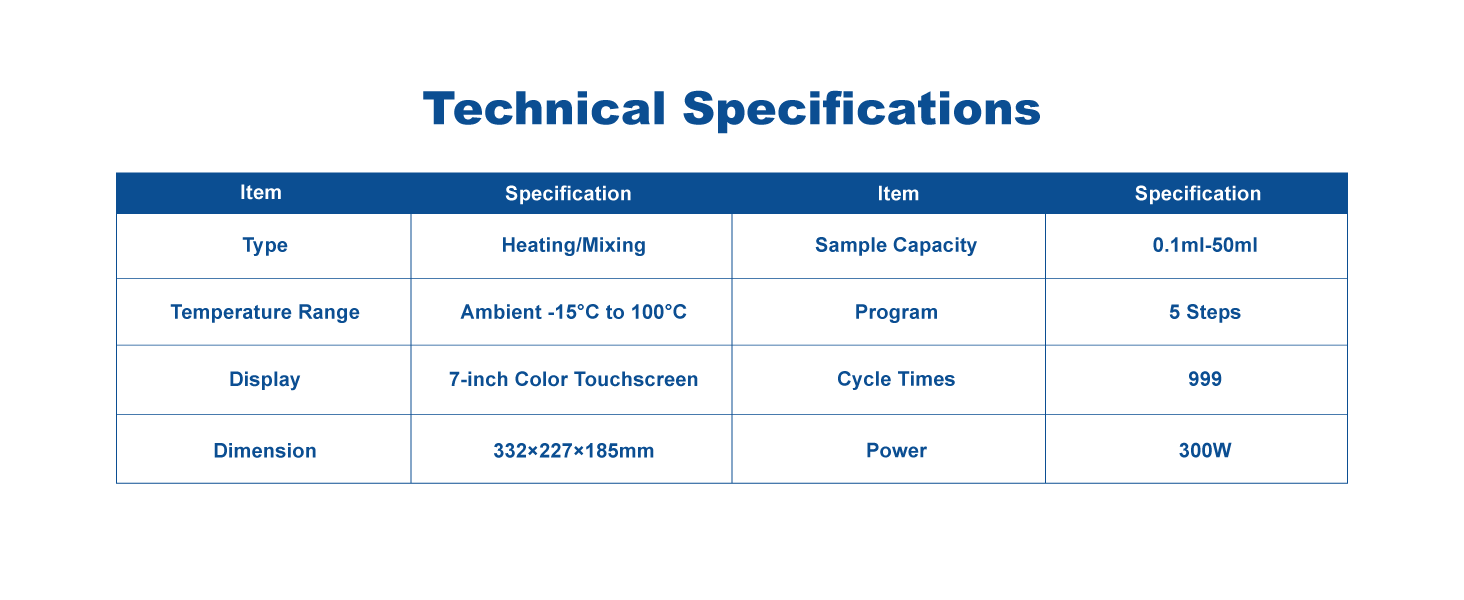

| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | 100C / 100 / D100C | Type | Heating/Cooling/Mixing (100C, D100C) Heating/Mixing (100) |
| Display | 7‑inch color touchscreen | Sample Capacity | 0.1 – 50 mL |
| Standard Block | 24 × 1.5 mL (other blocks available) | Temperature Control Range | 100C/D100C: ambient‑15°C to 100°C 100: ambient+5°C to 100°C |
| Temperature Setting Range | 0 – 100°C | Temperature Accuracy | ±0.2°C (20–40°C) ±0.5°C (<20 or >40°C) |
| Temperature Uniformity | ±0.5°C | Temperature Stability | ±0.5°C |
| Temperature Resolution | 0.1°C | Speed Range | 250 – 3000 rpm (100C/100) N/A (D100C) |
| Mixing Orbit (Diameter) | 3.0 mm (100C/100) | Heating Rates | MAX, 5, 2, 1 °C/min |
| Cooling Rates | MAX, 2, 1, 0.5 °C/min (100C/D100C) | Program Steps | Up to 5 steps per program |
| Cycle Times | Up to 999 cycles | Timer Range | 0 – 99 h 59 min 59 s |
| Calibration Points (100C/D100C) | 10, 40, 70, 95 °C | Calibration Points (100) | 45, 60, 80, 95 °C |
| Pre‑heating Function | Yes (0–100°C) | Low Temp Storage | Yes (4–20°C) |
| Auto Recovery | Yes (after power failure) | Heated Lid | Optional (block temp +5 to +20°C) |
| Maximum Power | 300 W | Power Supply | 110–220 V AC, 50/60 Hz |
| Weight (with std. block) | <10 kg | Dimensions (L×W×H) | 332 × 227 × 185 mm |
| Recommended Ambient Temp. | 10 – 30°C | Relative Humidity | ≤70% |
